Friday, April 6th, 2007Finished ELT door

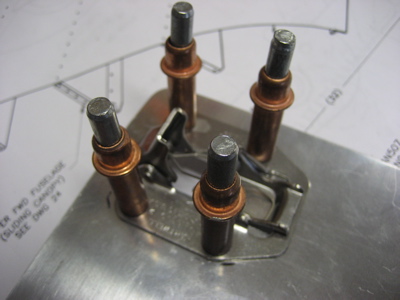

Wednesday, April 4th, 2007Okay, new plan. I could have made the Hartwell latches work and look okayish, but then I found these Camloc pushbutton latches. They are the same ones that are used to hold shut the oil filler door on a lot of certified aircraft, which normally makes them expensive – I think they are something like $36 apiece from ACS. Thank goodness, though, for the local aircraft surplus place, where they can be had for five bucks each. At that price I couldn't resist, so I picked up a handful to use for little projects like this. It's way easier to make a round hole for one of these guys than to file out the odd-shaped square hole for a Hartwell latch.
I had to build a new door to fit the new latches, but that was no big deal. I had plenty of extra scrap 0.032" from Airparts laying around anyway. This new door actually fits a lot better along the hinge area, which is a bonus.
I don't really know why I primed all these pieces. Superstition, probably.
Here's the finished product after riveting. I used some scrap 0.063" angle to make stiffeners at the fore and aft ends. The hinge pin has a bend in the end, and is inserted in such a way that it's prevented from backing out by the F-727L baggage floor rib. Simple as can be.

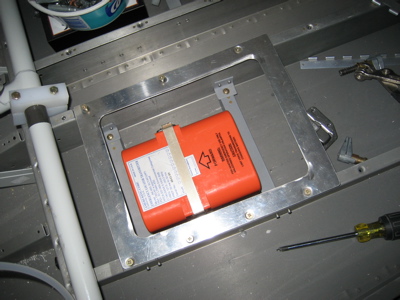

And here it is with the baggage floor screwed in place in the fuselage. It seems plenty strong enough with the stiffeners in there. It's also pretty easy to get the ELT in and out.
I couldn't tell how much "grab" the latches had until everything was installed for good, because it was too floppy to tell when it was just clecoed together on the bench. It turned out that the door had a little bit of rattle to it, so I riveted in some 0.032" striker plate thingies to give the latches something extra to hang on to. Now the door clicks shut and doesn't move.
This is what it looks like all buttoned up. With the carpet on top you won't even know it's there, but it's nice to know that I'll be able to get to the ELT in a hurry if I need it, and without needing any tools.
What a mess. Time to clean the workshop.
ELT access door
Sunday, April 1st, 2007After not getting very much done yesterday, I wanted to pick a simple project and blast through it today. I chose the access door for the ELT, and I got it mostly done after several hours of work. The goal was to create a door in the baggage floor that covers the ELT and fastens with latches that can be opened without any tools – I figure that might make a difference after an accident. The latches also have to be flush when the door is closed – this area will be covered with carpet, so protruding fasteners like these won't work. The last goal was to avoid sacrificing any of the strength of the baggage floor, despite cutting a big hole in it.

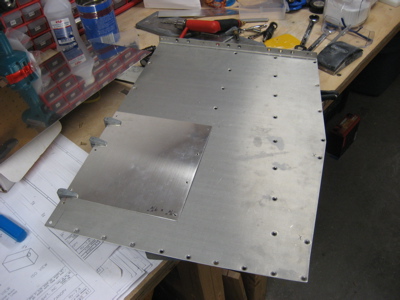

I started by cutting a blank out of 0.032" alclad and match drilling it to some of the screw holes in the left side baggage floor. This piece was the start of a doubler for the big hole I later cut in the floor.
I fashioned it into a doubler ring, using a unibit, snips, and files. Before it's installed permanently, I'll bevel the edges so the material of the baggage floor will lay over it properly.

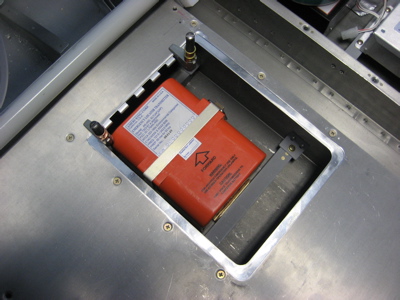

Then I cut the hole in the floor, using the same method. The doubler has a 3/8" lip on three sides, and no lip on the side where the hinge goes. The hole looks overly large here, but you actually need this much area in order to get the ELT in and out and to give the latches a place to fasten. And yes, at this stage I did make doubly sure that I could finagle the ELT in and out through the hole.

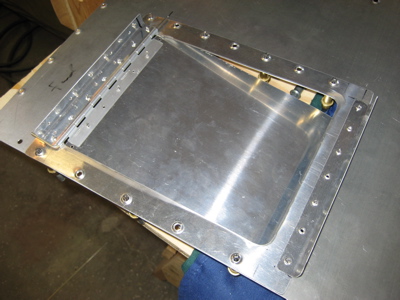

I made a simple door out of more 0.032" and fit it for a hinge. I also fashioned some scrap angle into stiffeners that run along the front and back.

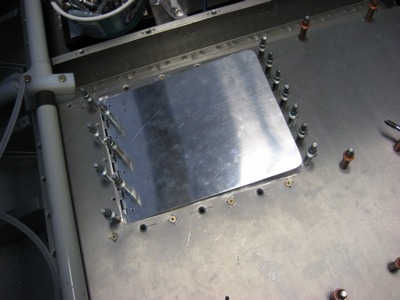

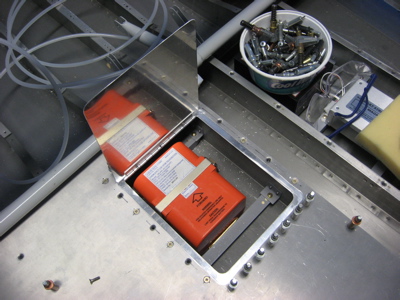

Test fitting the door. Notice that I doubled up on the screw holes around the door to reduce the amount of flex.
More test fitting of the door. The way the door matches the cutout in the area of the hinge leaves a little to be desired, but I'm not too worried since this will all be hidden under the carpet when people are looking at my airplane.

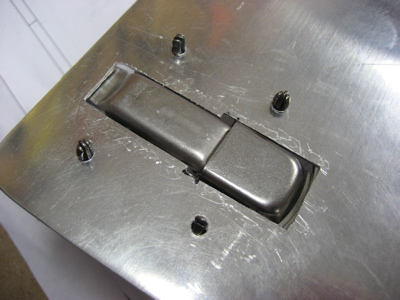

To keep the door closed, I'm using a pair of Hartwell latches. (Compare ACS's new price to their surplus price – ouch! Luckily I can get surplus ones locally even cheaper.) I only had time to rough out the hole for one latch, but it turned out okay. A little more filing and deburring and it will be done, then I'll do the other one to match. I wish Avery sold a drill bit that would make a square hole.
Here's a view of the back side of the latch. These are designed for thicker material, so I'm probably going to have to make some shims to make them flush with the top of the door – otherwise I suspect I would have latches opening inadvertantly when I put luggage back there.
