Top cowl fitting

Sunday, June 20th, 2010

No more putting it off… time to start fitting the top cowl. Much like with the canopy, the instructions are frustratingly vague (although at least with fiberglass, if you take off too much there is usually a way to put more back on). I have been reading everything I can find on the usual RV sites, soliciting advice from friends near and far, and generally just trying to get an idea of where to begin.

One trick I discovered during my research was the use of a book as a spacer to set the height of the front of the cowl. I thought that was so clever I stole it for myself. As a rule I generally hate defacing books, but in this case an old outdated copy of the FAR/AIM had to give its life for the greater good.

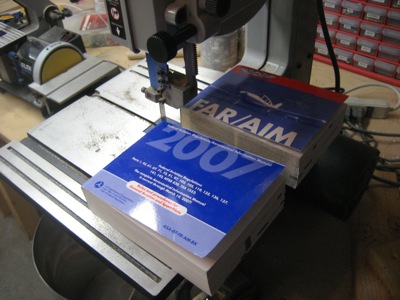

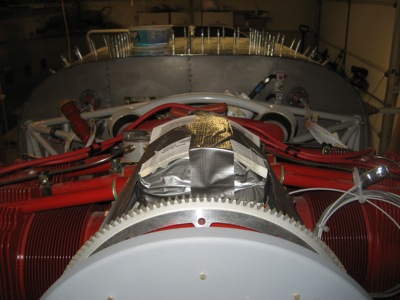

I duct taped half the book to the top of the engine case between the spinner and the fuel injection distributor, and added and subtracted pages until I had the thickness I needed.

Here you can see why this works… the book-chunks on top of the engine naturally assume a shape that's helpful for centering and positioning the cowl, which has a similar contour.

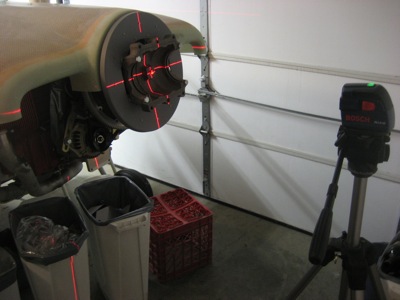

There are no trim lines molded into the cowl, so it's hard to tell if you have it level, or if it's even symmetrical as-delivered. I leveled the fuselage and then used my super cool new self-leveling laser to find the centerline of the cowl and check the relative lengths of the sides. It turned out that one side is about 3/8" taller than the other. I'll use this tool again when I'm finalizing the top/bottom cowl split line.

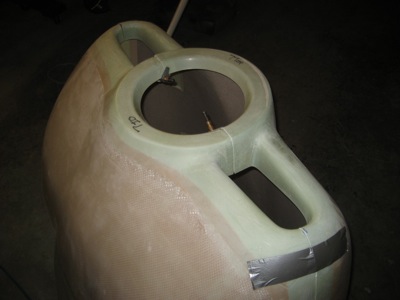

Before you fit the top cowl to the fuselage, you have to make the top and bottom cowls fit each other at the forward end. On my cowl, I had to cut about a quarter inch off the lower cowl at the outboard corners in order to get the two halves to mate around the spinner opening. This is one of those frustrating problems where you don't quite know where to start removing material, and you get paranoid about cutting off something you shouldn't. I stewed about this for quite some time, and eventually just decided to start cutting and hope for the best. It turned out fine… just go slow and it will be okay.

The fit gets progressively better as you sand off more material…

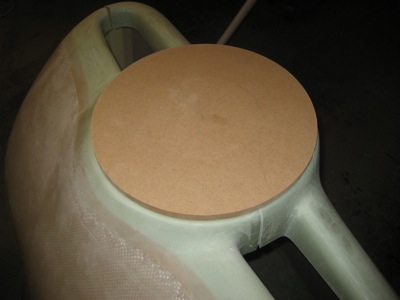

Turns out I do have a use for that wooden copy of the spinner backplate I made – measuring the circularity of the spinner opening on the cowl. I ended up making the opening about an eighth of an inch taller than it is wide… the extra space will be at the "chin" of the spinner opening. This will hopefully give the spinner some room to sag downward as the engine mounts break in, without making the spinner-to-cowl transition look ugly.

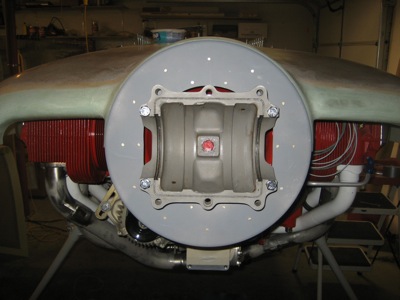

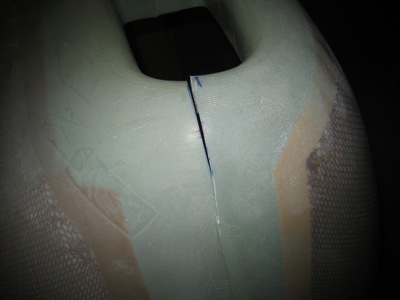

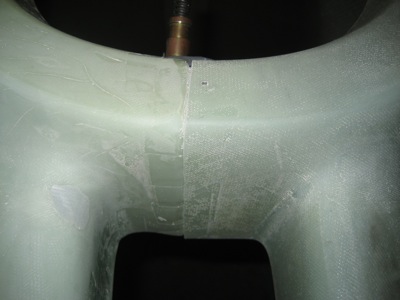

The inboard side of the left inlet turned out pretty well. A little filling and sanding later on will make this practically seamless.

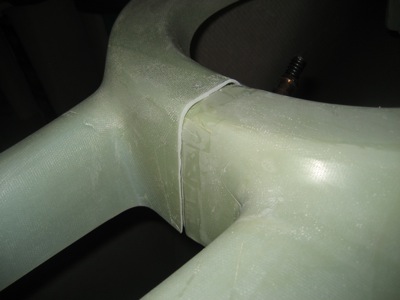

The right side fits okay, but not great. I will have to do some more involved work to get this to match up, but it shouldn't be too bad.

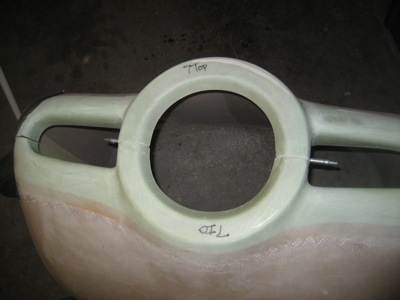

I locked the two halves together with a single cleco on each side. Later on I'll put real screws and nutplates here, but for now it's okay to let things float a bit.

Checking for side-to-side alignment:

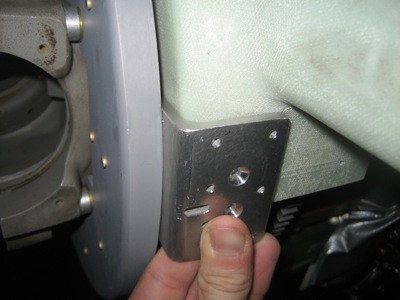

The plans call for an idea gap of 1/4" between the forward face of the cowl and the aft edge of the spinner backplate. I'm going to shoot for 3/16" to begin with, then sand the cowl edges until I get closer to 1/4". That should keep me from accidentally making the gap too wide. Here I've positioned the left side of the cowl so a 3/16" spacer just fits through the gap:

The right side is a different story… the gap is more like 5/16" here. I guess that's not a huge amount of variation for such a big piece of fiberglass. I will have to even this up with filler later on, but I have done that before on another airplane and it's no big deal.

I drew a reference line on the fuselage skin exactly two inches back from the forward edge:

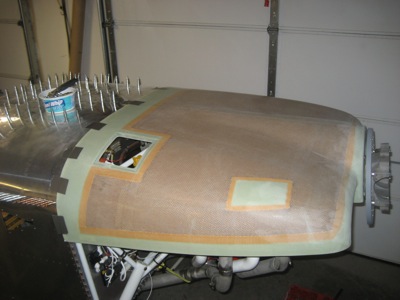

…then taped the cowl to the top skin to keep it from walking around:

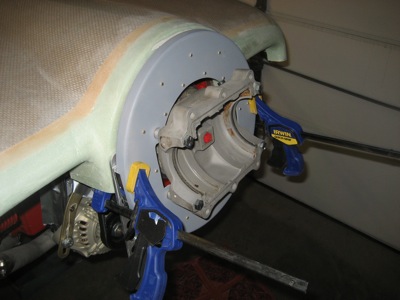

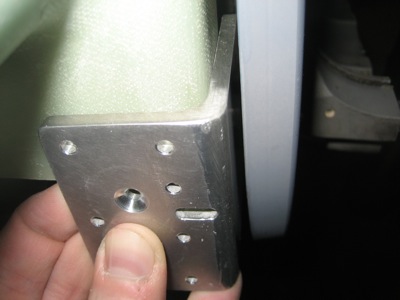

I clamped the forward face to the spinner backplate, with a 3/16" spacer on the left side and a stack of scrap pieces on the right side as required to fill the wider gap. The key thing here is to keep the cowl from shifting around, not to try to force the gap to be even.

I very carefully marked a line on the cowl, two inches forward of the reference line:

Then I got out my cutoff wheel and trimmed the cowl back to the line. Since I was doing this solo, I didn't get a picture of the process, so you'll have to be happy with this self-portrait.

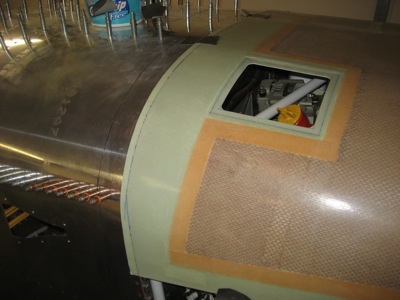

It doesn't quite fit perfectly all the way around, but it's nothing that hours of tedious trimming and sanding won't fix.

Giant sanding block

Sunday, June 20th, 2010

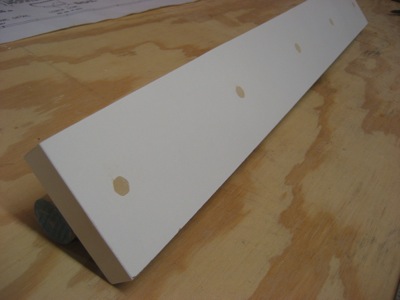

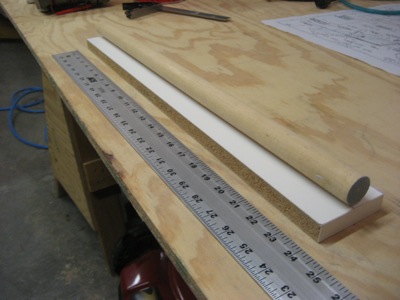

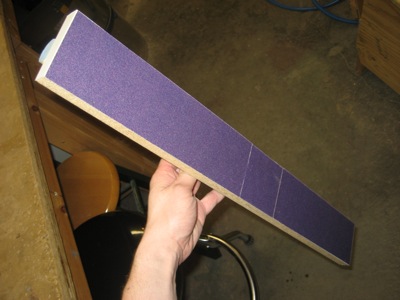

I made this two-foot-long sanding board out of scrap wood I had laying around, the better to sand the long straight edges of the fiberglass cowl. It's just a dowel screwed to a very flat piece of MDF shelving material.

I filled the screw holes to keep the paper from getting punctured and torn.

I attached some 60 grit 3M paper using spray glue. Purple, Mary's favorite.

Top cowl mounting strip continued

Saturday, June 19th, 2010

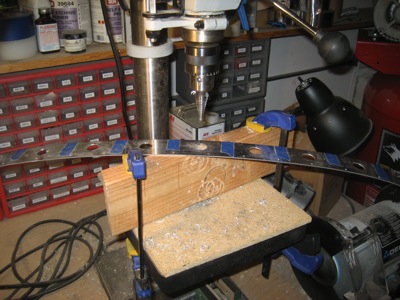

More work on the top cowl mounting strip, to which the camlocs will eventually be attached. The spaces between adjacent camlocs need to be notched out so the remaining aluminum can be shaped to conform to the tapered cowl shape. I taped over the pilot holes for the camlocs – to keep myself from accidentally enlarging them prematurely! – and started each notch with a hole whose edge is about a quarter inch away from the end of the fuselage skin.

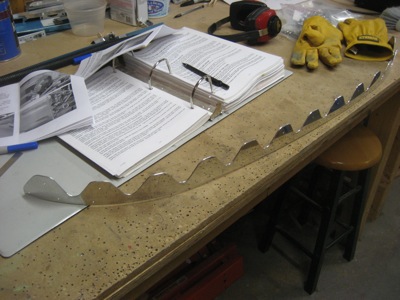

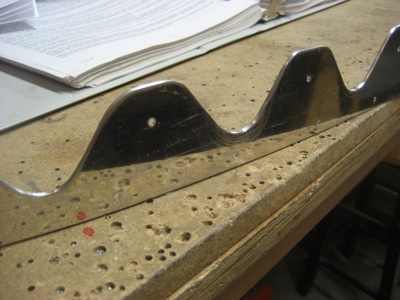

A lot of cutting, filing, and shaping later, here's the finished product. If you can get to this point in building the airplane, you should be able to make this part from raw stock with no problems, so I won't bore you with a detailed step-by-step.

I found that it was handy to have a variety of rotary files and scotchbrite wheels to chuck up in the drill press. And yes, you can cut all the notches on a small bandsaw if you plan carefully.

I will have to make finer adjustments later, but for now I just roughly bent the two most outboard tabs on each side to generally match the cowl shape. The easiest way to do this is to put it in a vise with padded jaws and wail on it with a rubber mallet.

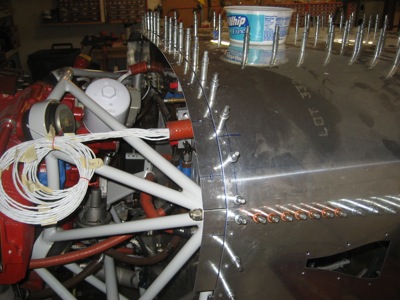

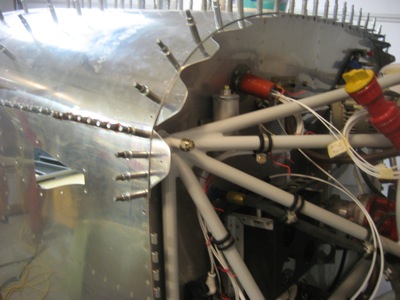

The finished product clecoed in place, one of many trial-fittings it took to get to this point. You'll notice that I also trimmed down the side pieces that go below the bend at the upper longeron. I resisted the urge to put one more camloc down the side, since there needs to be a gap between the camloc strip and the side hinge in order to insert the hinge pin. Luckily I remembered now and not after finishing the top cowl!

Top cowl mounting strip

Sunday, June 13th, 2010

Wow, whatever I had really knocked me for a loop, but thanks to modern medicine I am mostly over it at last. Irregularly-scheduled blogging will now (sporadically) resume.

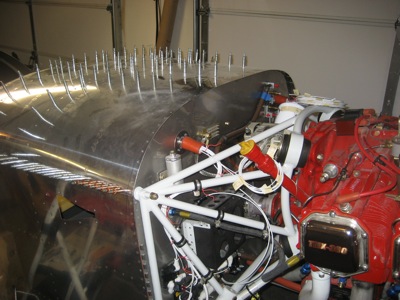

I pulled the forward top skin out of storage and clecoed it to the fuselage:

The cowl on my last airplane was attached with a combination of quarter-turn camlocs and piano hinge, instead of using hinges everywhere as the plans show. That seemed to work all right, so I've decided to use a similar setup on the current airplane project. The bottom cowl will be attached to the firewall with straight sections of piano hinge, and I'll use camlocs to attach the top cowl to the firewall and along the horizontal seam between the top and bottom cowl halves.

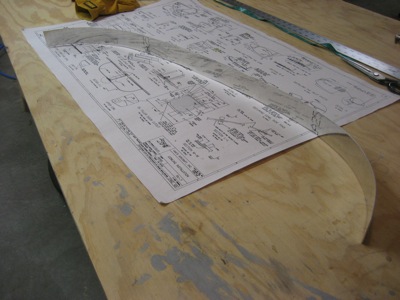

The camlocs need a metal backing strip attached to the fuselage, to which the camloc receptacles will be mounted. I cut a 3" strip off the end of a sheet of 0.062" alclad (gee, I really wish I had a big metal shear) and shaped it with hand pressure until it conformed to the curve of the firewall.

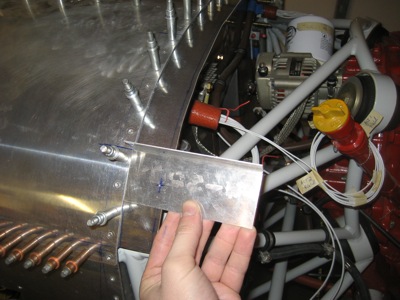

While clamping it carefully in place, I match drilled every other hole through the forward edge of the top skin and the firewall flange. If you plan it carefully, you can use a single piece with no compound curves that runs from a point just above the upper longeron all the way over to the corresponding spot on the opposite side of the firewall. Then you add small filler pieces below the firewall bend line, which I'll show in a bit.

To mark a trim line a fixed distance forward of the firewall flange, I drilled a 1/16" hole at a suitable location in a piece of scrap aluminum, stuck a pen through it, and dragged it along the mounting strip. Simple.

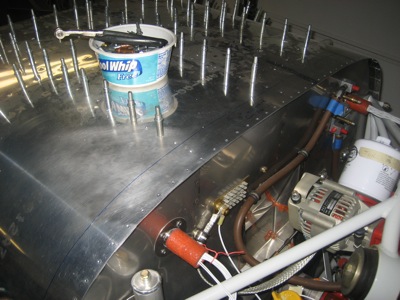

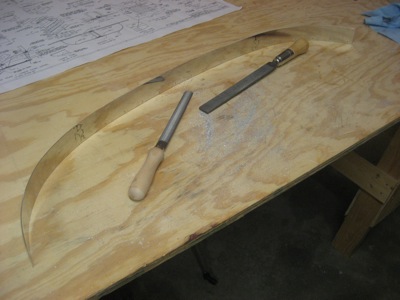

Lots of cutting and filing later, I had the mounting strip trimmed down to size.

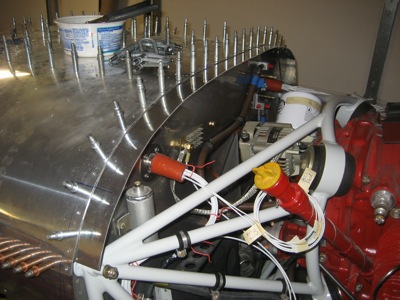

It's hard to see here, but I've now marked and drilled #40 pilot holes where the camlocs will eventually go. You can also see one of the extra filler pieces that brings the line of fasteners all the way down to the horizontal cowl seam.

The instructions recommend a maximum spacing of 3.5"-4" between adjacent camlocs; however, since I remember seeing the cowl "pillowing" between fasteners at high speed on my last airplane, I decided to reduce the spacing to 3 1/8". That also helped keep the hole pattern away from the split between the main piece and the two smaller pieces.
